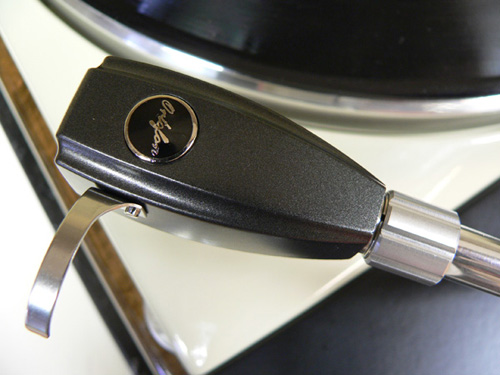

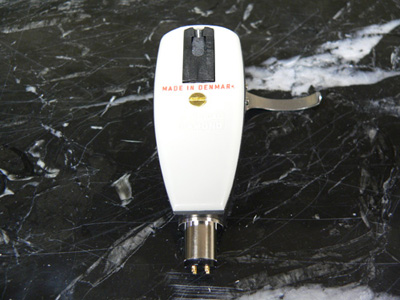

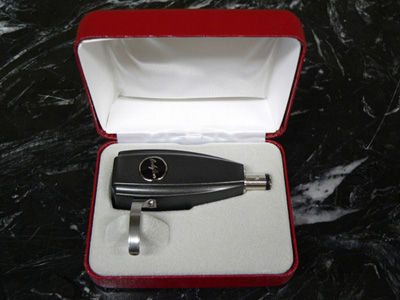

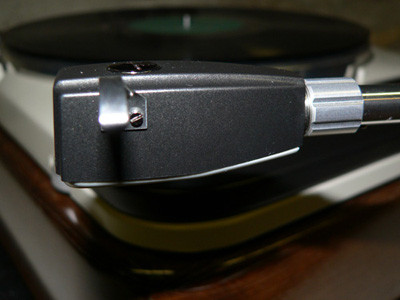

Ortofon SPU Classic GM/E MK II - Stereo Tonabnehmer
Erhältlich in zwei Ausführungen. GM/E MK II (elliptisch) und GM MK II (rund).
Die grösste Verbesserung zur MK I Version ist das "grinded Wood" Gehäuse. Daraus resultiert ein stabilerer Sound. Auch die Anschlüsse sind modifiziert worden.
Das SPU Einsteiger-Pick Up für einen guten Preis!
Ortofon SPU Classic GM MK II: CHF 1000.--
Ortofon SPU Classic GM/E MK II: CHF 1100.--
Garantie: 1 Jahr, ausgenommen mechanische Beschädigung des Nadelträgers.
Technische Daten / Technical Datas
| Output Voltage at 1000 Hz, 5 cm / sec | 200 uV |
| Frequency range Frequency response |
20-25000 Hz 20-20000 Hz +3 /- 2 dB |
| Channel balance at 1 kHz Channel Separtion at 1 kHz Cahnnel separation at 15 kHz |
<1.0 dB 20 dB 10 dB |
| FIM distortion at recommended tracking force, DIN 45.542 Tracking ability at 315 Hz at recommended tracking force Compliance, dynamic, lateral |
<1% 60 um 8 um/mN |
| Stylus type Stylus tip radius Equivalent stylus tip mass |
Nude elliptical R/r 18/8 um 1.0 mg |
| Tracking force range Tracking force, recommended Tracking angle |
3.0 - 5.0 g (30 - 50 mN) 4 g (40mN) 20° |
| Internal impedance, DC restistance | 2 Ohm |
| Recommended load Impedance, DC restistance | >10 Ohm |
| Cartridge body material Cartridge colour Cartridge weight |
Grinded wood Nickel black 30 g. |
_______________________________________________________________________
The sound of excellence !
In the late 1950s the iconic SPU cartridge range featured Ortofon's newly introduced low coil resistance and impedance concept. As a basis for reproducing superb high frequencies, this concept has been continually improved and refined in the decades since.
The latest version of the SPU Classic is the GM MK II. It exists in two version. With a nude elliptical stylus (GM E MK II) and with a nude spherical stylus (GM MK II).
The major improvement of the MK II versions is the grinded wood cartridge body. The result is a more stable sound. Also the connector has been improved.
This SPU Classic is the best buy Ortofon MC Pick up in the SPU series.
Ortofon SPU Classic GM MK II: CHF 970.--
Ortofon SPU Classic GM/E MK II: CHF 1050.--
